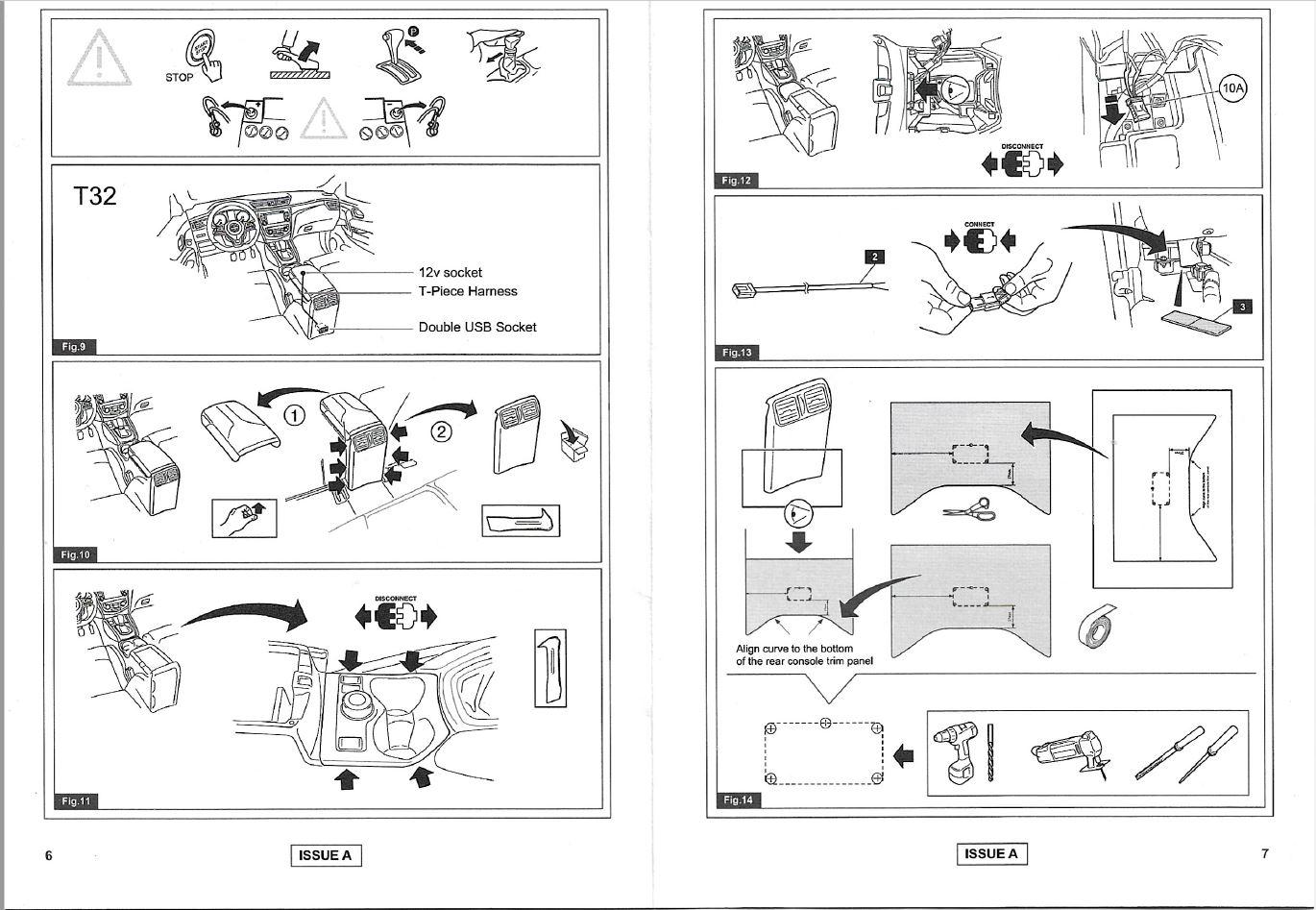

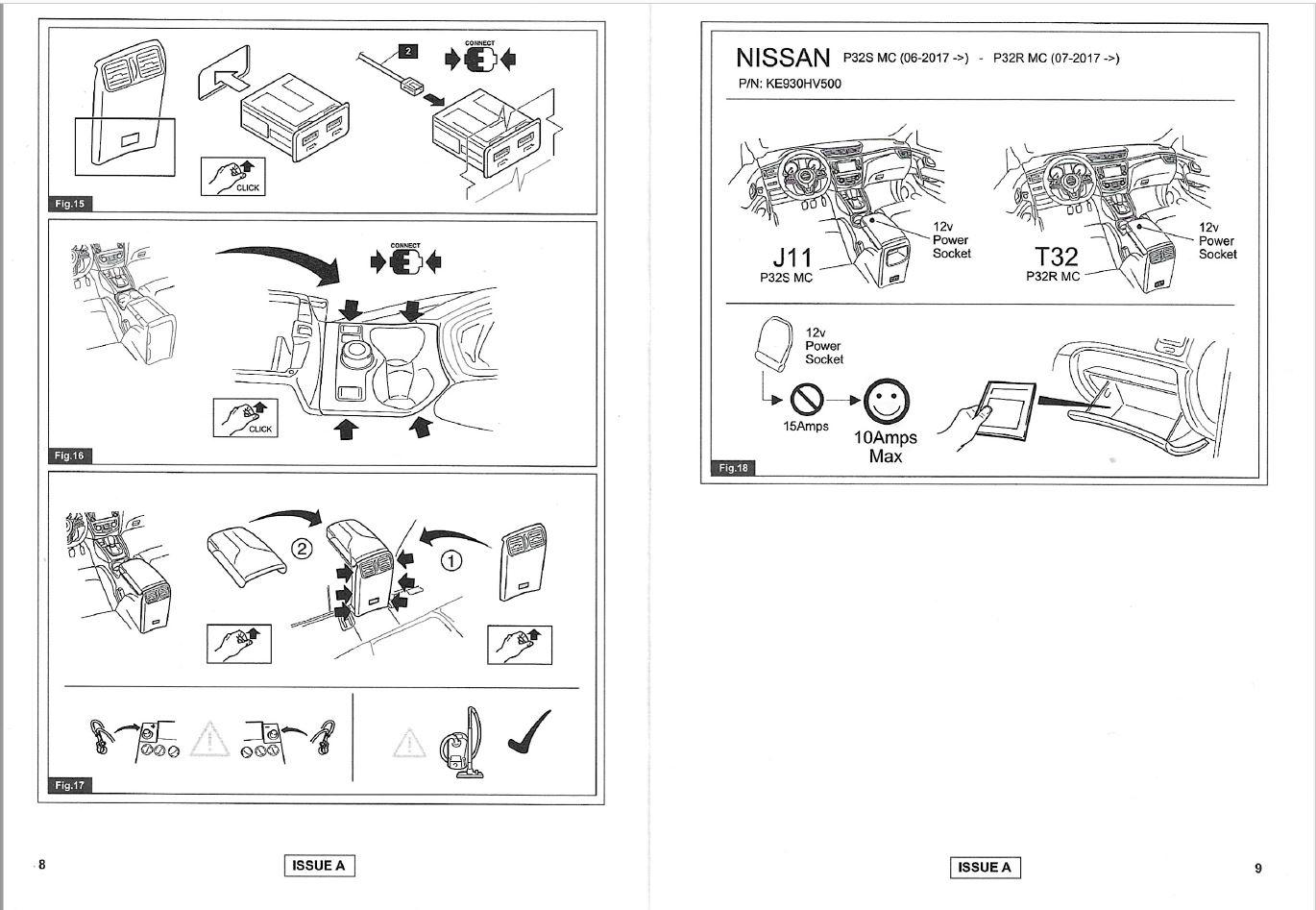

joey_turbo Posted August 9, 2021 Share Posted August 9, 2021 I've just fitted the rear double USB kit to my 2017 X-trail. Got to have it to keep the kids devices charged on long journeys. I thought I'd upload the instructions, for anyone who wanted to take a look before they decided to do it. I couldn't see them for the X-Trail anywhere, saw some for the Qashqai. Some cutting is involved, which didn't bother me, but might be a bit scary for some people. I was going to put USB ports in the back either way, but this kit was much easier as it its plug and play from the 12v socket in the centre console storage bin. The instructions didn't make much sense to me, but I will add that in Figure 10, it isn't clear that there is a torx head screw to undo, so you can pull the rear panel off with the fans on. You only need to remove this and not the whole lid of the storage bin. To access the screws, there is rectangle piece between the hinges of the lid, that you can just unclip. It does come with cutting template to line up where you need to cut. I was hoping to fit the ports closer to the top, so the kids don't break it, or any cables when getting in and out, but space is restricted behind the panel, so it does need to be done at the bottom. 1 Link to comment Share on other sites More sharing options...
Trevor Posted August 9, 2021 Share Posted August 9, 2021 Thanks for uploading the instructions and running through the fitting procedure, very useful to anyone else who also wishes to install additional charge points. Link to comment Share on other sites More sharing options...
joey_turbo Posted August 17, 2021 Author Share Posted August 17, 2021 I think its a very handy accessory. I'm considering adding another towards the rear of the car. Cross referencing the part numbers for the 12v power socket in the centre console box, and the one at the rear of the car, they have the same part numbers. Centre console: Boot: So that does technically mean that the cabling that comes with the usb package, should fit the onto the wiring loom in the boot also. I'll rake a chance and order one, and see what space there is to mount this in the 3rd row of seating/boot area. For information, I bought the kit for £21 from a Renault parts dealer on ebay. Other sellers have them on there for up to £68. So worth it, I believe for an OEM part. 1 Link to comment Share on other sites More sharing options...
joey_turbo Posted August 22, 2021 Author Share Posted August 22, 2021 So I decided to give the rear USB port a go. Went quite well I thought. Can't seem to get the images under the 134kb limit yet though. I did manage to scan the cutting template for the centre console USB port, should anyone need that. D'oh, can't upload that either. Link to comment Share on other sites More sharing options...
Trevor Posted August 23, 2021 Share Posted August 23, 2021 I have increased the image upload size so you should now be able to upload the images Link to comment Share on other sites More sharing options...

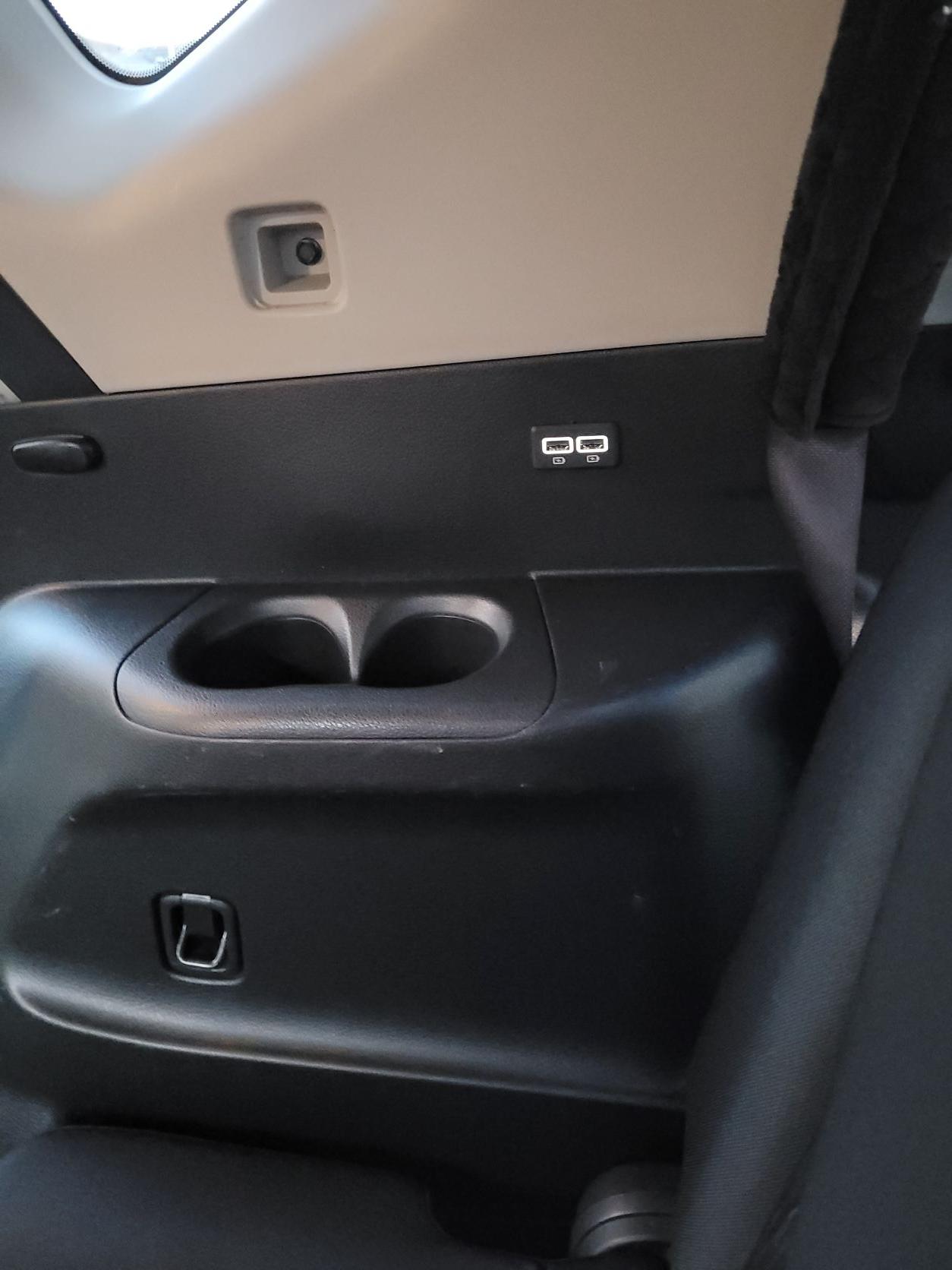

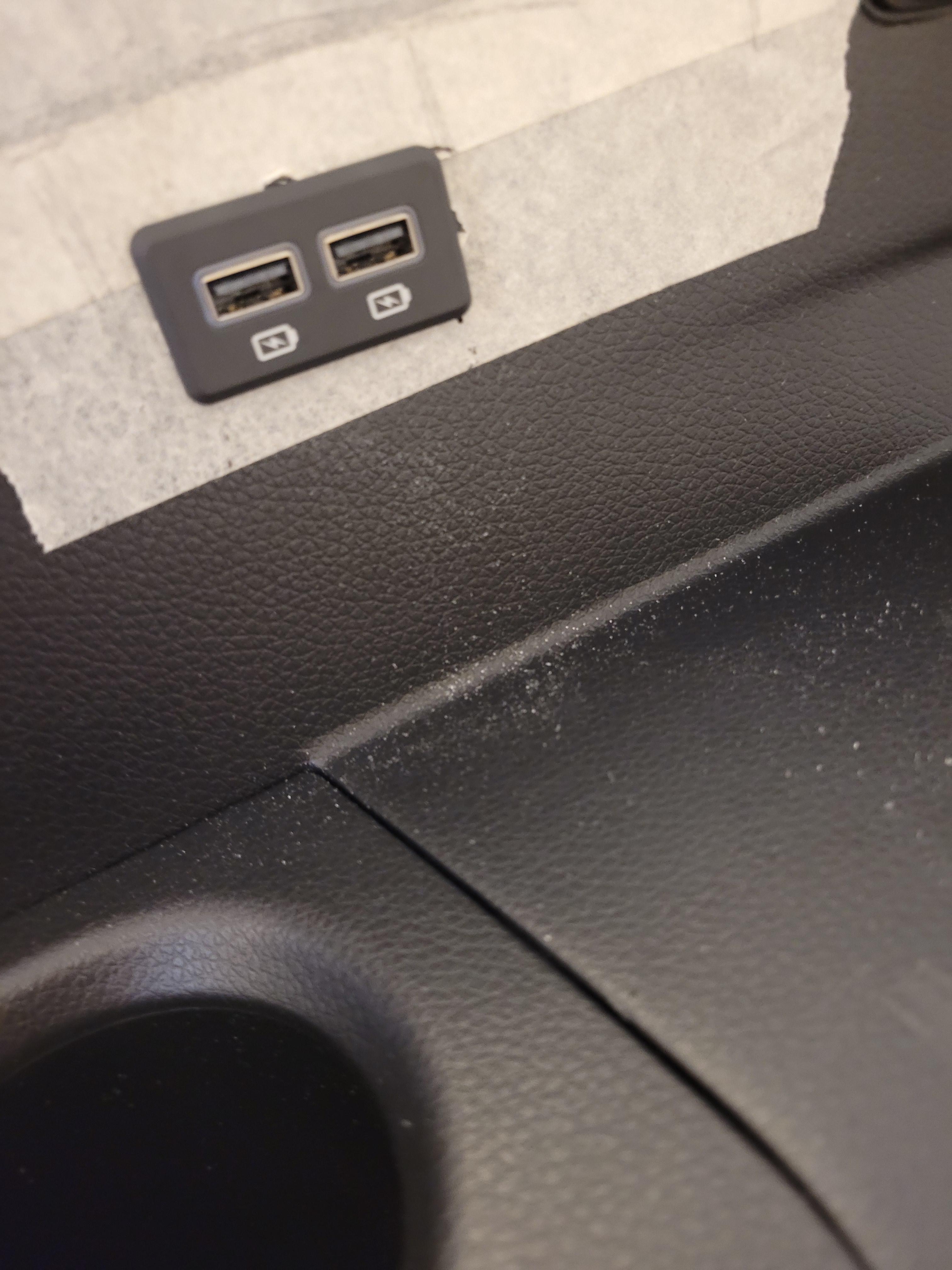

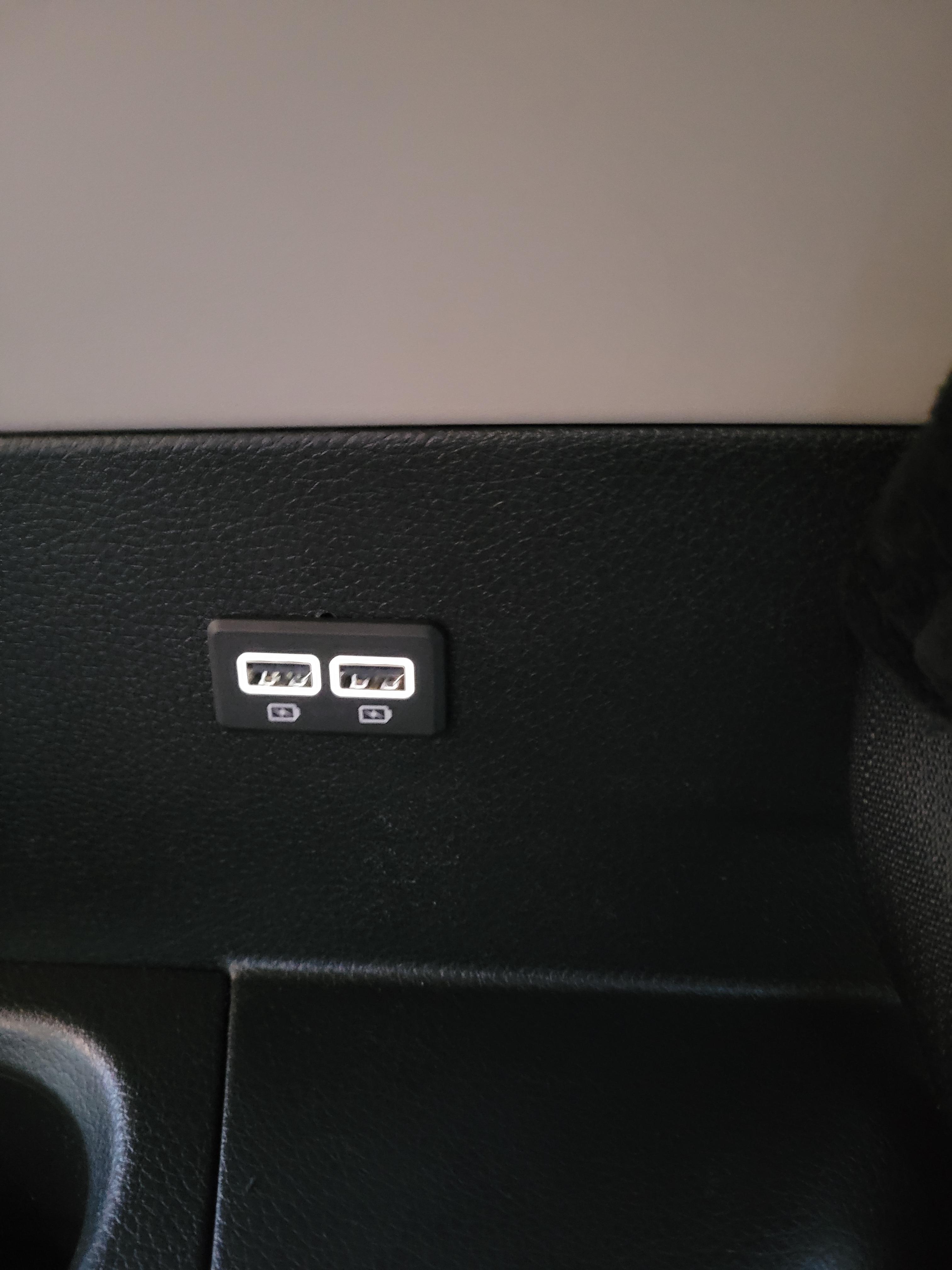

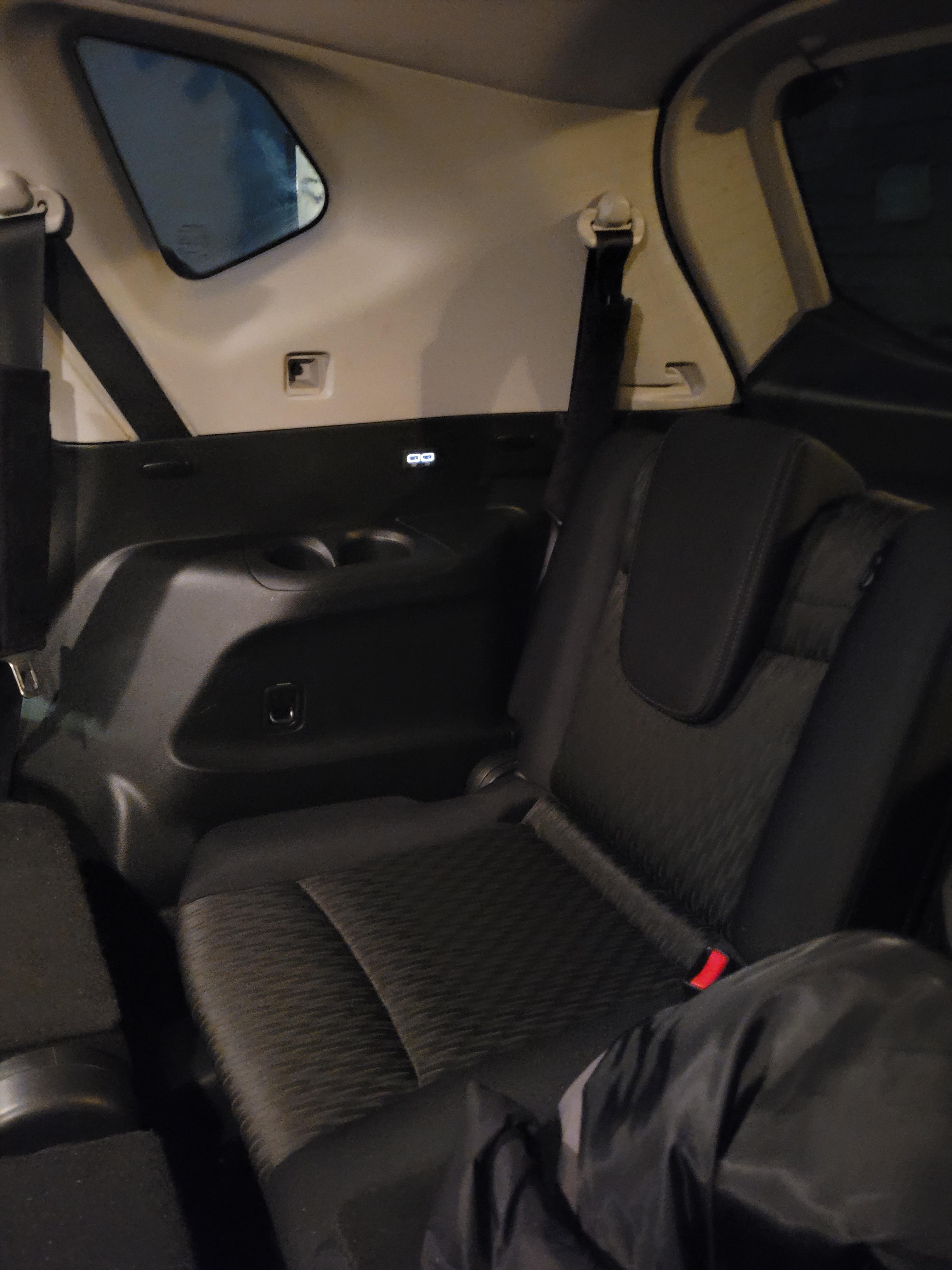

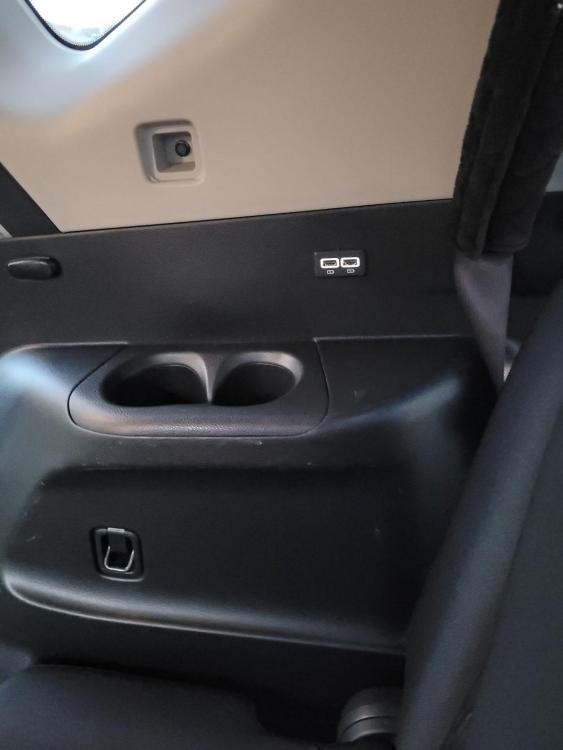

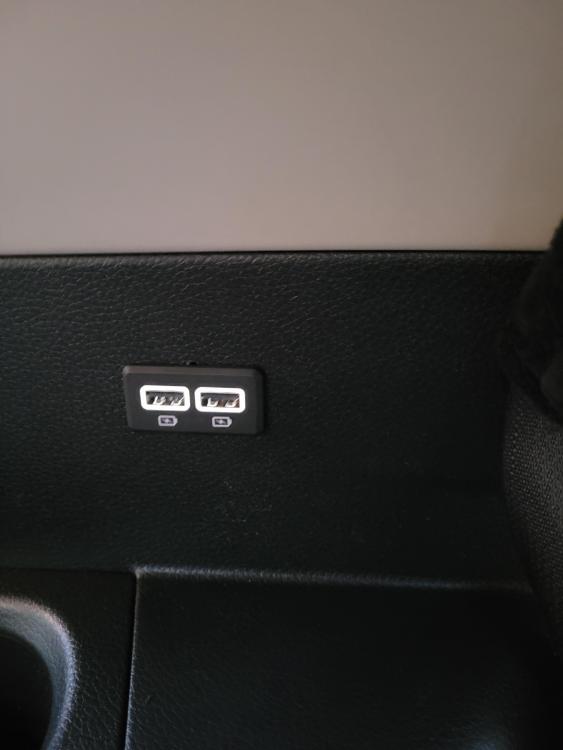

joey_turbo Posted August 25, 2021 Author Share Posted August 25, 2021 Thanks Trevor Here is the USB port template for the centre console: And some of where I placed the double USB port for the 3rd row seats: xtrail usb port template.pdf 1 Link to comment Share on other sites More sharing options...
Trevor Posted August 30, 2021 Share Posted August 30, 2021 Great job! thanks for sharing this guide in the forums Link to comment Share on other sites More sharing options...
